RetroSix
CleanJuice USB C Battery Pack (Game Gear)
CleanJuice USB C Battery Pack (Game Gear)
Regular price
$39.08 USD
Regular price
Sale price
$39.08 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Upgrade your Game Gear from AA batteries to a drop-in USB C dual-lipo rechargeable battery pack.
Adds 22.2 watt hours of power giving you over 13 hours of game time!
Charge at any time using a regular USB C cable, and even reverse charge the console from your phone if it supports power share. That means you can charge your Game Gear while you are out, using your phone battery.
Designed and tested in the UK by a reputable modder and builder, the RetroSix CleanJuice for Game Gear is the ultimate upgrade to your console.

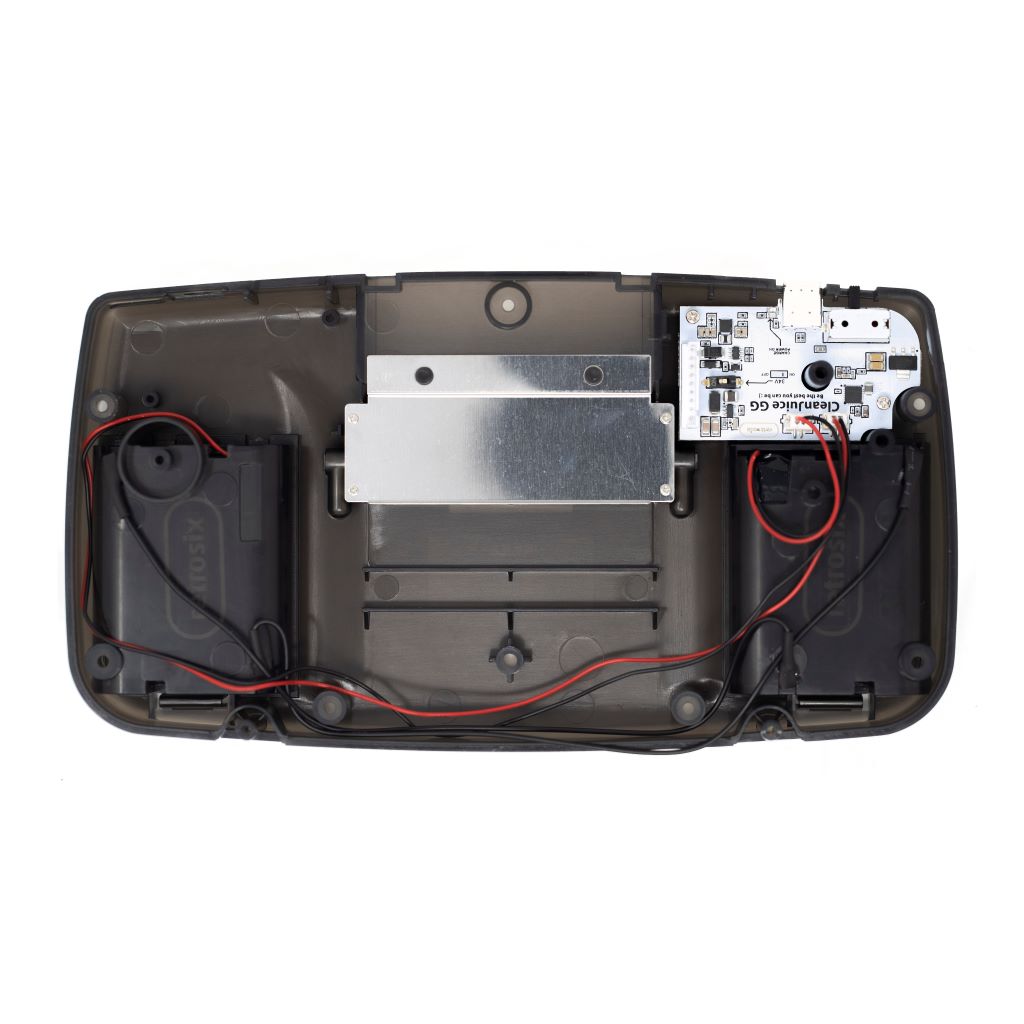

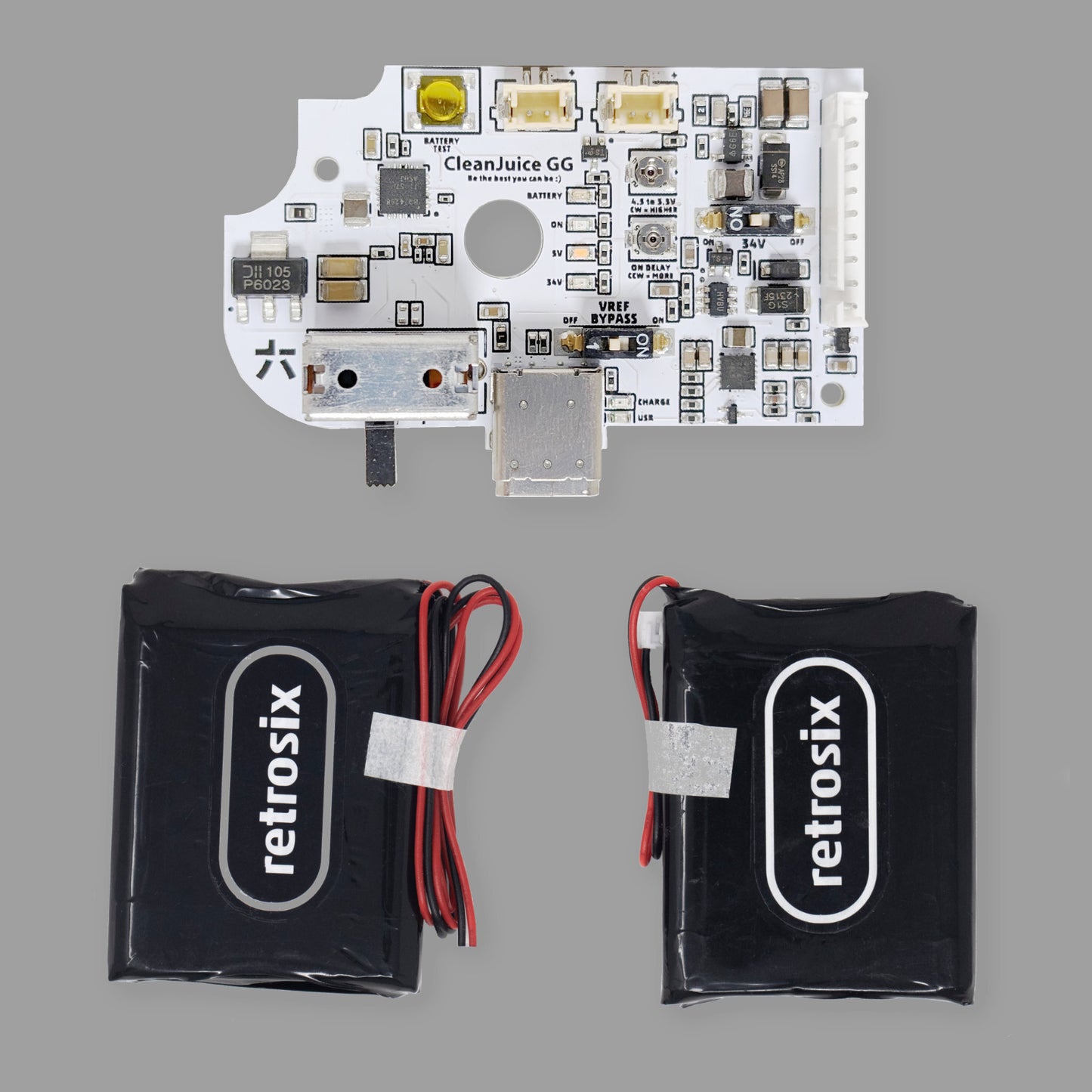

Remove the old power board and insert the new CleanJuice power board.
Insert both lipo batteries into the AA battery compartments and feed the wires through and connect them in any order to the CleanJuice board (only fits in one way so don't worry).
If your shell is a RetroSix ABS shell, no need to do anything. If it's regular shell, trim the battery compartment as needed to fit the batteries.

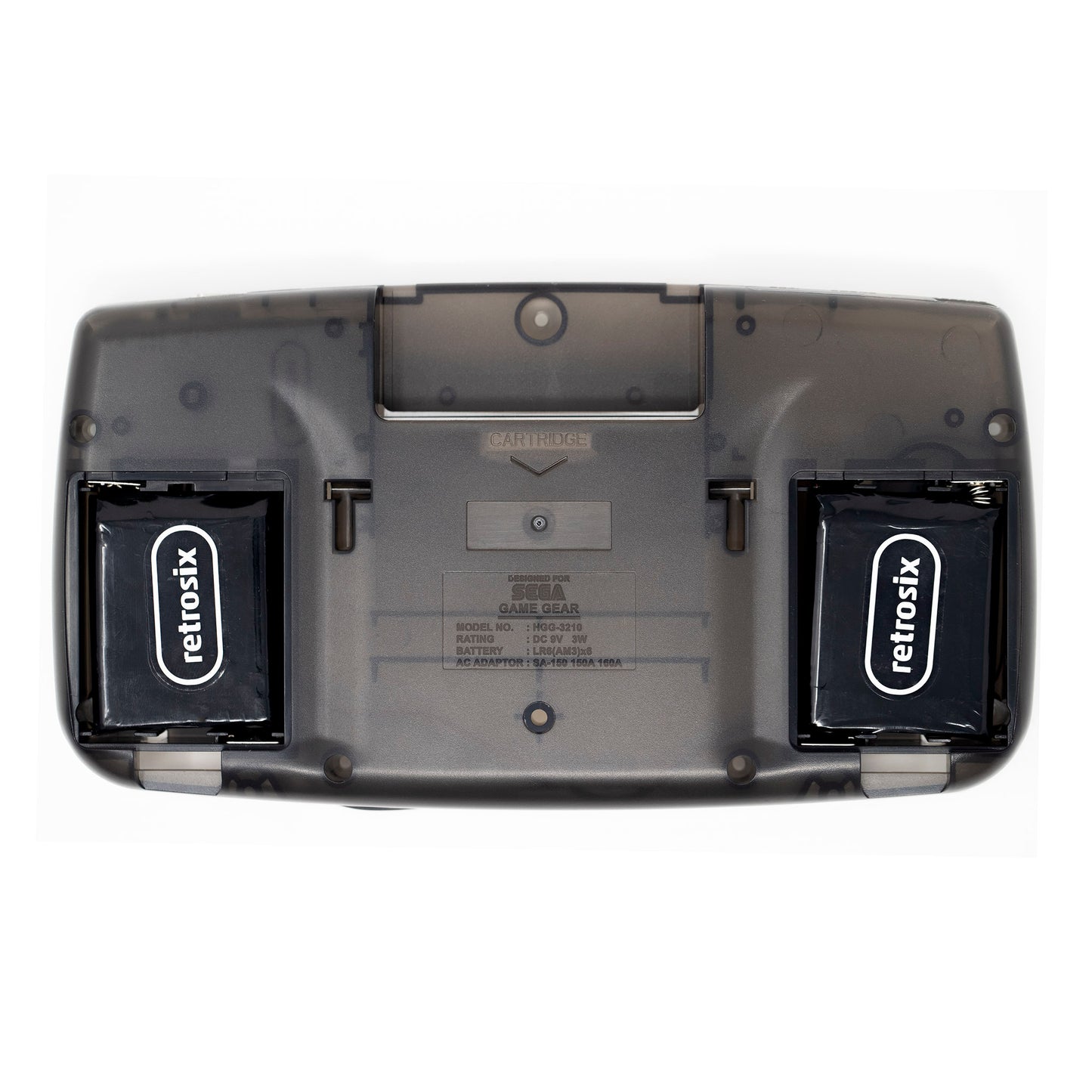

Put the battery covers on the console, and you are ready to go.
Give the CleanJuice a full charge and enjoy well over 13 hours of gaming even with a fully CleanScreen + CleanAmp modded console!
Features
- USB-C charging (cooler 36C charging at full power)
- Fused outputs on all rails (USB, 5V, 34V, VSYS)
- Low battery trigger (flashing red LED on low battery)
- Delayed VREF (to allow EverDrive or mods to power up before GG)
- Delayed 5V to allow VREF to control GG before providing 5V
- Adjustable 4.5 to 5.5V for stabalising GG operation
- 34V Toggle Switch
- VREF Bypass Switch (to test GG VREF circuit faults)
- Discharge 5V rail resistors (if GG discharge circuit is bad)
- Ultra low noise 5V rail (<10mV ripple under full load)
- Battery Test LED
- System Voltage Rail LEDs
