Game Boy Color IPS OSD Q5 XL Screen Kit
Game Boy Color IPS OSD Q5 XL Screen Kit
Regular price
$77.29 USD
Regular price
Sale price
$77.29 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
DON'T forget to order your desired Q5 sized GBC glass lens to go with this screen.
The Game Boy Color brings a ravishing rainbow of over 32,000 possible colours to the bright 44 x 39mm screen, along with twice the processing power of its monochrome sibling.

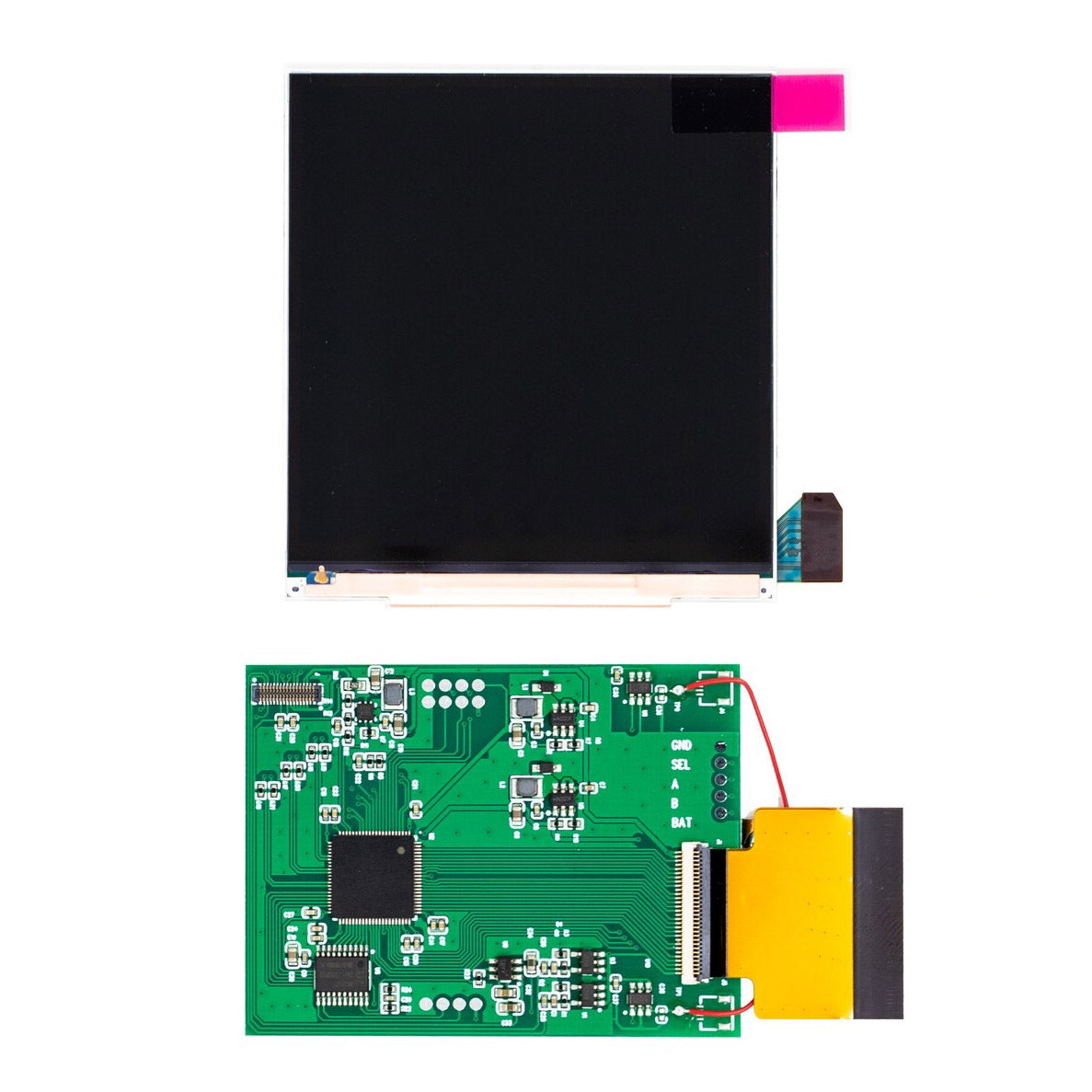

This brand new Q5 XL IPS kit comes with IPS screen and control board. The LCD is larger than the original.
- Built-in OSD Menu
- The display area is 15% larger than the original.
- Retro pixel effect can be turned on & off.
- Image position is adjustable. No need to worry about misalignment of the LCD screen during the installation.
- Battery level display can be turned on & off.
- Wide view angle up to 178 degree
- OPTIONAL: You need to solder 3 wires to control the on screen display menu
You don't need to do any soldering if you don't want to use the OSD Menu! Because it can change the brightness, color modes and Retro Pixel via touchpad.
Please test the backlight before installing. Backlight kits that show any sign of being installed are not eligible for returns or refunds.
Install
If installing in a RetroSix shell, simply snap off the small tabs inside the front window, otherwise you need to cut the original/third-party shells extensively to fit the screen and window.
Use our Q5 bracket to align and fix the screen in place without the need for any glue.

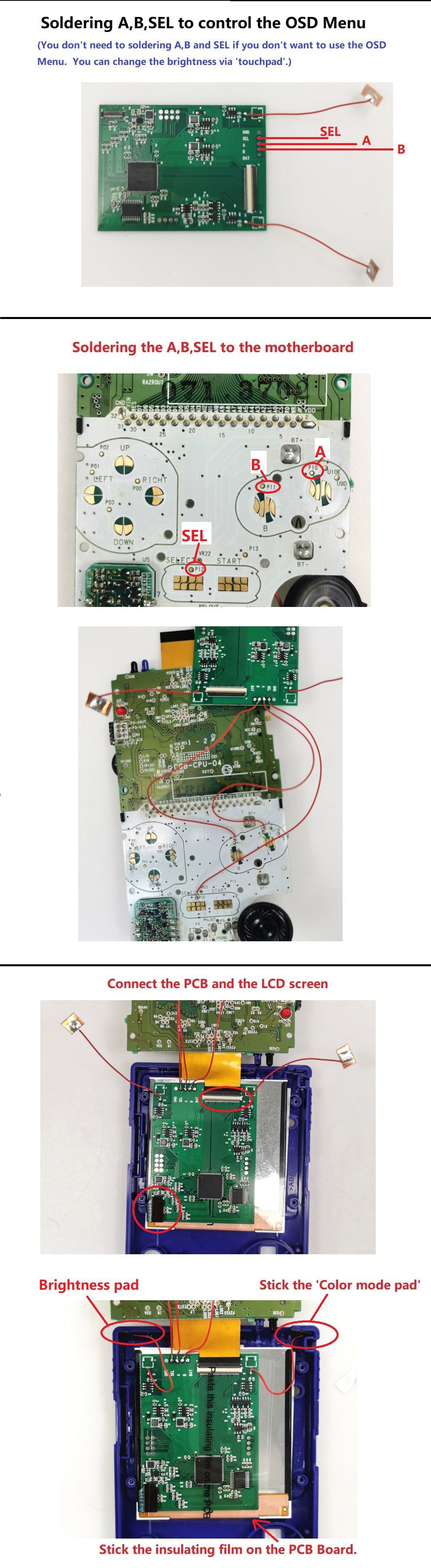

Optionally solder the On Screen Display wires as shown in the product image.
