Game Boy Pocket CleanPower Regulator

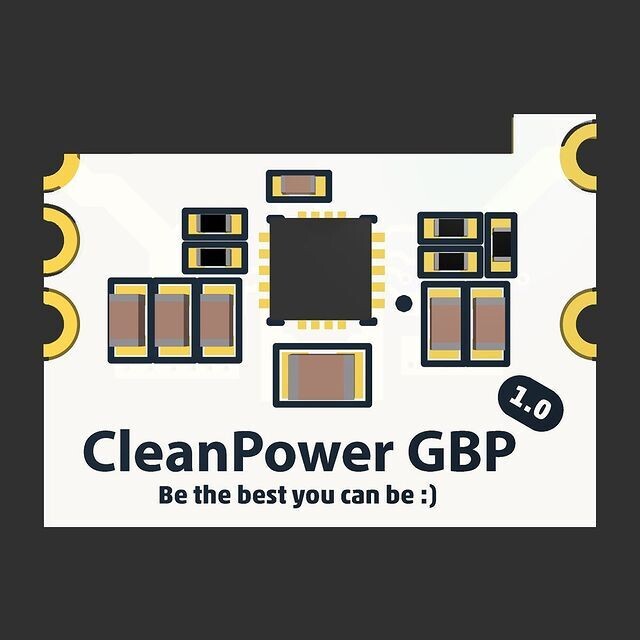

The CleanPower replaces the original power regulator PCB of the Game Boy Pocket with a modern smooth and health power supply.

With the introduction of IPS mods, audio mods and other power hungry alterations to the console, the original regulator on the system is hugely over-strained and fails over time or does not power on at all due to the current draw.

The CleanPower board by RetroSix addresses all of those issue, providing a clean, stable and efficient 5V line to the system to keep the lifespan of your console at it's best.

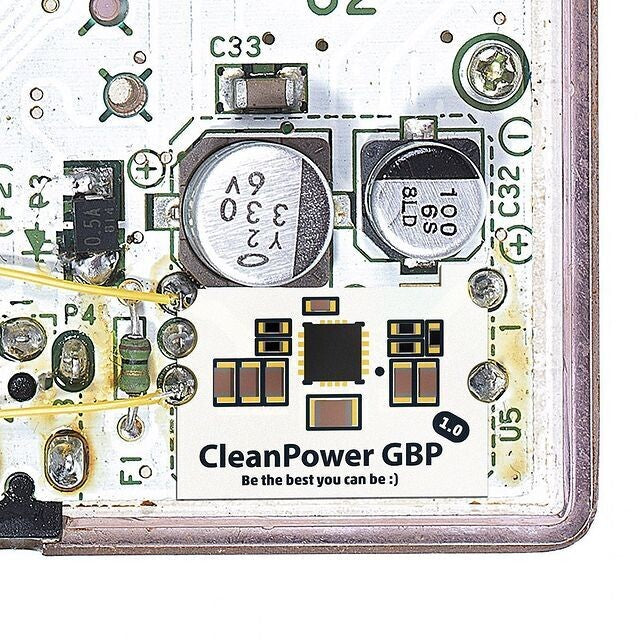

To install, see images. Simply de-solder the old power regulator and solder the CleanPower in the same place as the original regulator.

The input range of the CleanPower on VIN is 2.5V to 12V. This gives modders a much wider range if they want to install 2S lipo kits!

NOTE: The CleanPower only supports modern screens and does not provide the voltages for the original screens. If you want to use the original screen, simply leave the original regulator in place, and cut the top left pin on the original regulator (when looking at the console from behind and regulator is in bottom right corner). Then the old regulator will supply the LCD voltages, and the CleanPower will supply the bulk system power for the IPS / amp mods.
