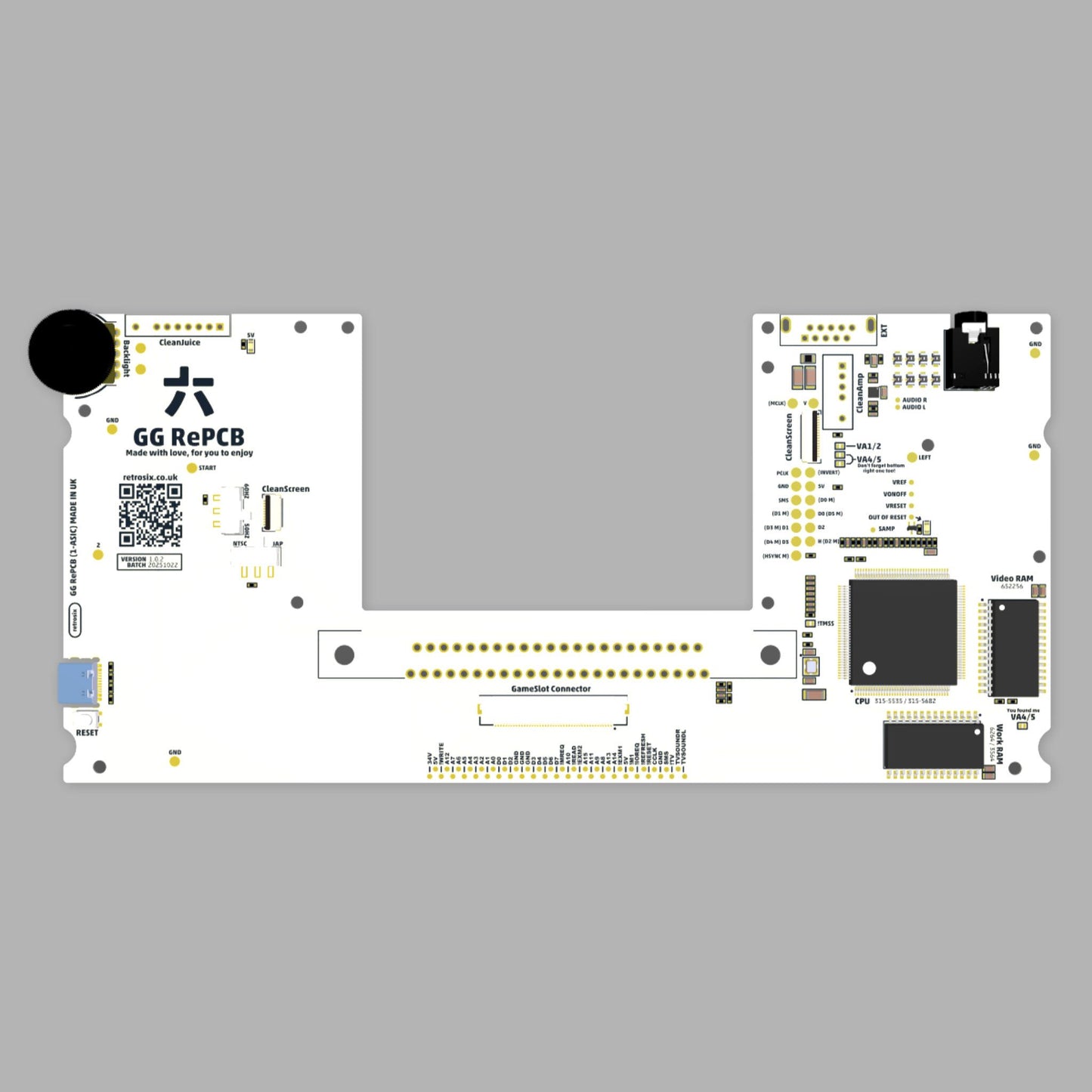

Game Gear RePCB New Motherboard (1-ASIC) Pre Order

A complete remake of the original Game Gear motherboard for VA1/2/4/5 (All 1-ASIC variants), designed for use with the CleanScreen (not original LCD), and packed with many cool features and quality-of-life enhancements.

We recommend purchasing a GameSlot to go with this so you don't have to transplant your cartridge port.

Comes with:

• Game Gear RePCB motherboard populated with everything except ASIC, cartridge slot and EXT port
• Brand-new power and audio ribbons
• CleanScreen ribbons

• Self-Powered: No need for power or audio boards for testing. Simply plug a USB cable and headphones into the ports on board to fully power up and test the console.
• Reset button to reset game, useful for bench testing when powering from onboard USB-C.
• Japan / English toggle switch, accessible from battery compartment when closed up.#
• 50 / 60Hz Switch (50Hz not compatible with CleanScreen v3, V4 will support it)
• Comes with CleanScreen ribbons for solder-free CleanScreen install.
• Test points and solder pads for all important signals
• Improved audio with tones never heard before thanks to rerouted traces and a new amp and audio filter circuit change.
• Out of reset LED so we know if ASICs out of reset.
• Power good LED for 5V rail.
• Brand new SMD crystal for main system clock.
• New PCB layout for less noise and cleaner power rails, more accurate data transmissions.
• Brand new high-quality SMD components and an improved PCB design fixing any faults found with the original.

Fully Assembled Option

We now provide an option where we will use a working original Game Gear and do the full transplant of chips over to the PCB so you have a completely working Game Gear without the need to even solder anything!

The normal option you will need to transplant the ASIC, cartridge slot, power/audio ribbons and EXT Port yourself.

TARGET SHIP DATE Nov, Early DEC 2025
