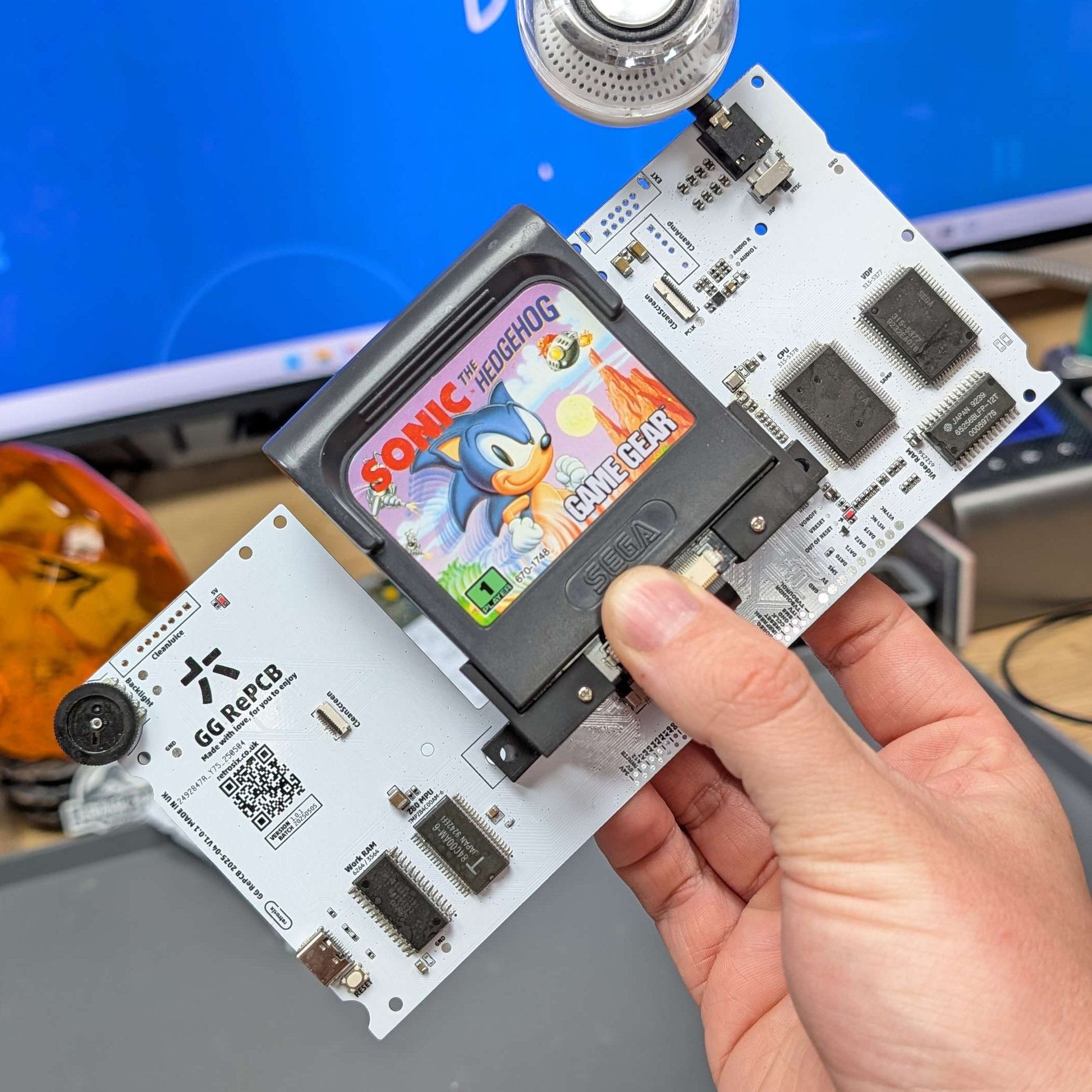

Game Gear RePCB New Motherboard (2-ASIC)

Game Gear RePCB New Motherboard (2-ASIC)

Regular price $46.43 USD
Regular price $51.57 USD Sale price $46.43 USD
Sale Sold out
Shipping calculated at checkout.

Discounted at Launch!
Product Details

A complete remake of the original Game Gear motherboard for VA0 (2-ASIC), designed for use with the CleanScreen (not original LCD), and packed with many cool features and quality-of-life enhancements.

Simply transplant your ASICs, MPU and EXT port from the existing console. Then use either a GameSlot or transplant your original cartridge slot over.

We recommend purchasing a GameSlot to go with this so you don't have to transplant your cartridge port.

Comes with:

  • Game Gear RePCB motherboard populated with everything except ASICs, MPU, cartridge slot and EXT port
  • Brand-new power and audio ribbons
  • CleanScreen ribbons
  • Solder paste, stencil and spreader to apply solder paste if you want to hot-air ASICs on
Features:
  • Self-Powered: No need for power or audio boards for testing. Simply plug a USB cable and headphones into the ports on board to fully power up and test the console.
  • Reset button to reset game, useful for bench testing when powering from onboard USB-C.
  • Japan / English toggle switch, accessible from battery compartment when closed up.
  • Comes with CleanScreen ribbons for solder-free CleanScreen install.
  • Test points and solder pads for all important signals
  • Improved audio with tones never heard before thanks to rerouted traces and a new amp and audio filter circuit change.
  • Out of reset LED so we know if ASICs out of reset.
  • Power good LED for 5V rail.
  • Supports original crystal and brand new SMD crystal.
  • New PCB layout for less noise and cleaner power rails, more accurate data transmissions.
  • Brand new high-quality SMD components and an improved PCB design fixing any faults found with the original.
