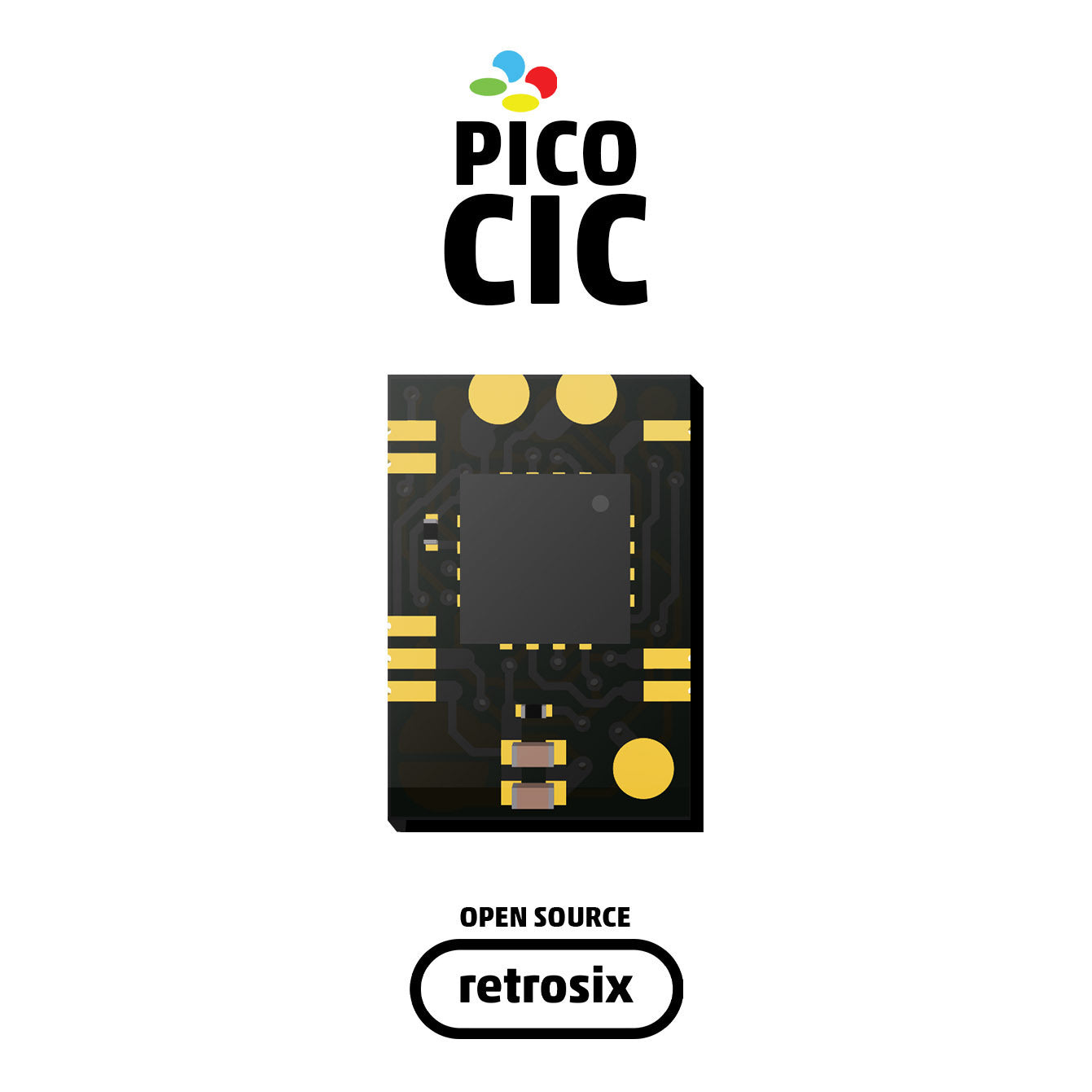

The SNES PicoCIC is the worlds smallest and simplest install for the region free CIC mod on a SNES. It is the best way to modify your SNES or Super Famicom console to play all region games.
Compatibility: All SNES or Super Famicom models except 1-chip

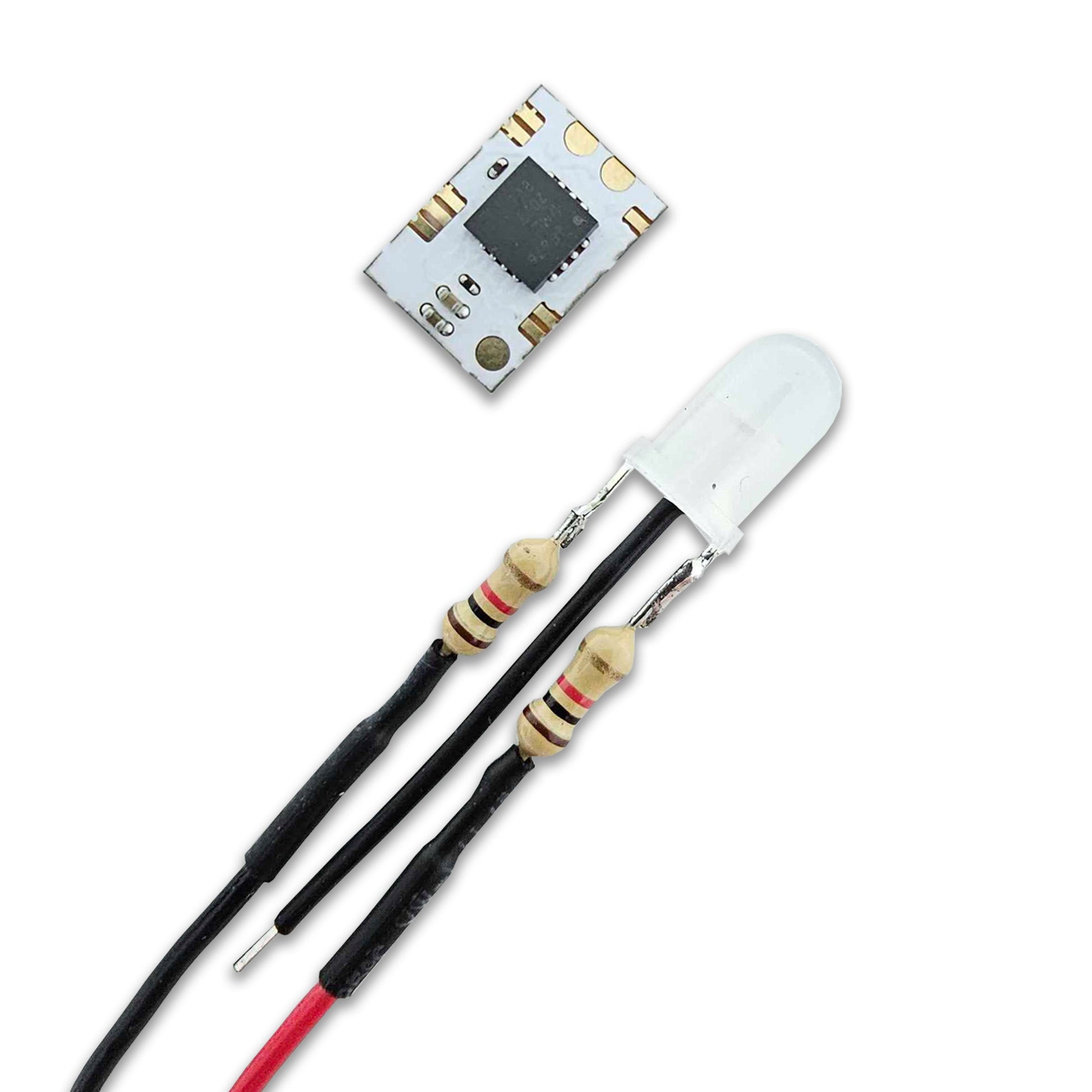

Comes with pre-soldered LED and wire.
Features:
Play games from all regions. 100% compatible with all imports.
Easy to install with only a few wires to solder.
Switchless mod with no case alteration necessary.
Change region by holding down the reset button over half a second.
50Hz, 60Hz, or auto-detect mode indicated by dual-led. (Red/Blue/Purple)
Installation
Install video found at youtube.com/retrosix

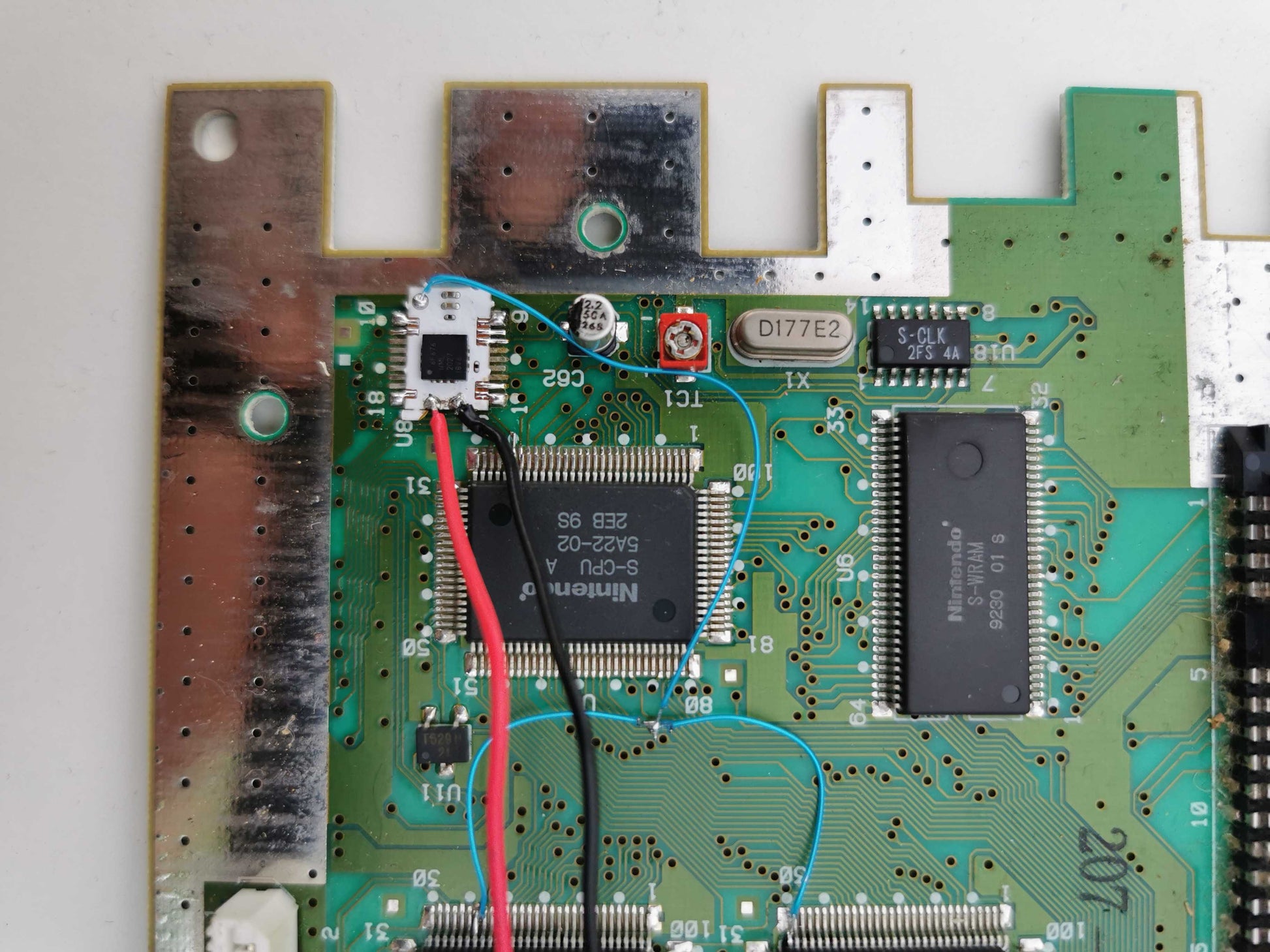

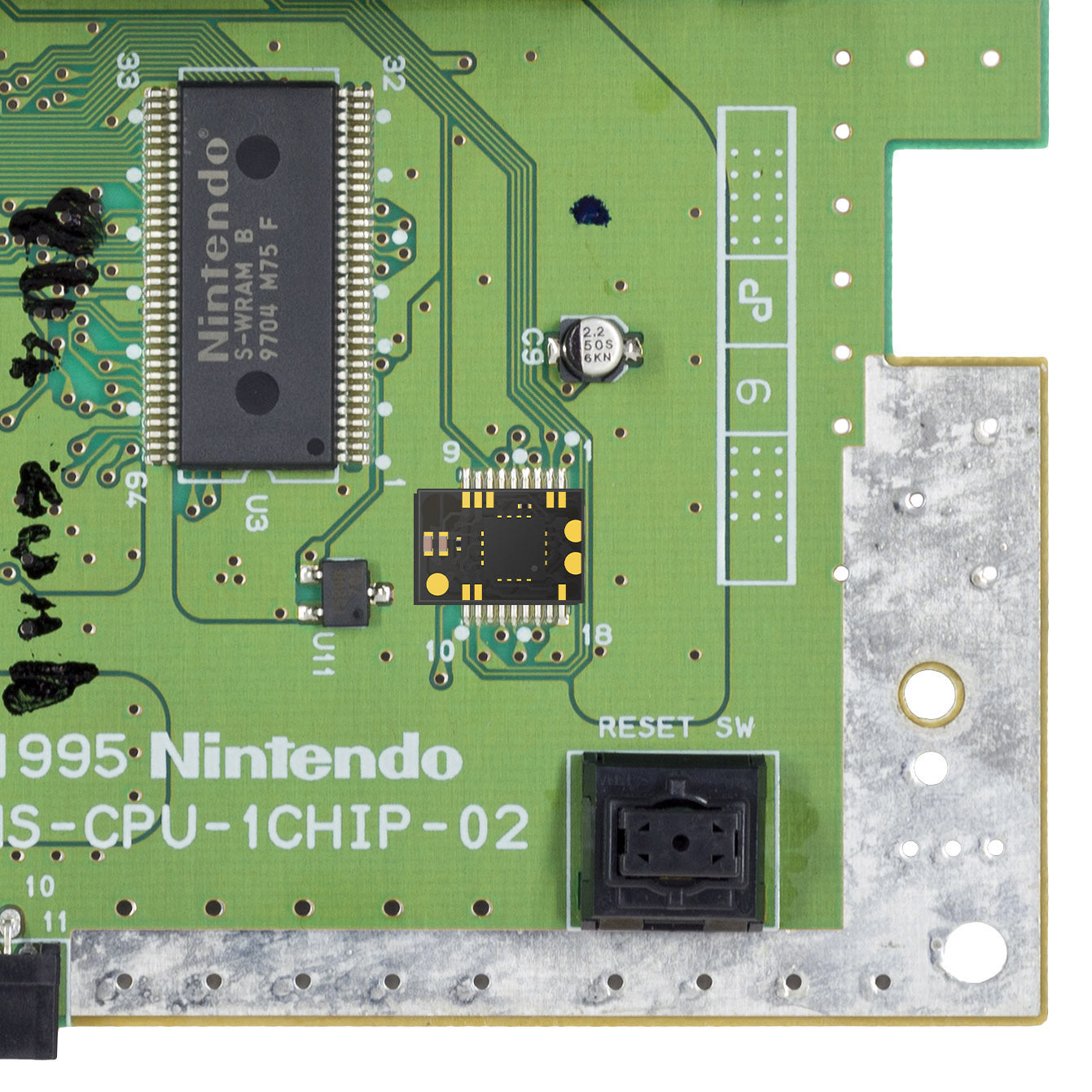

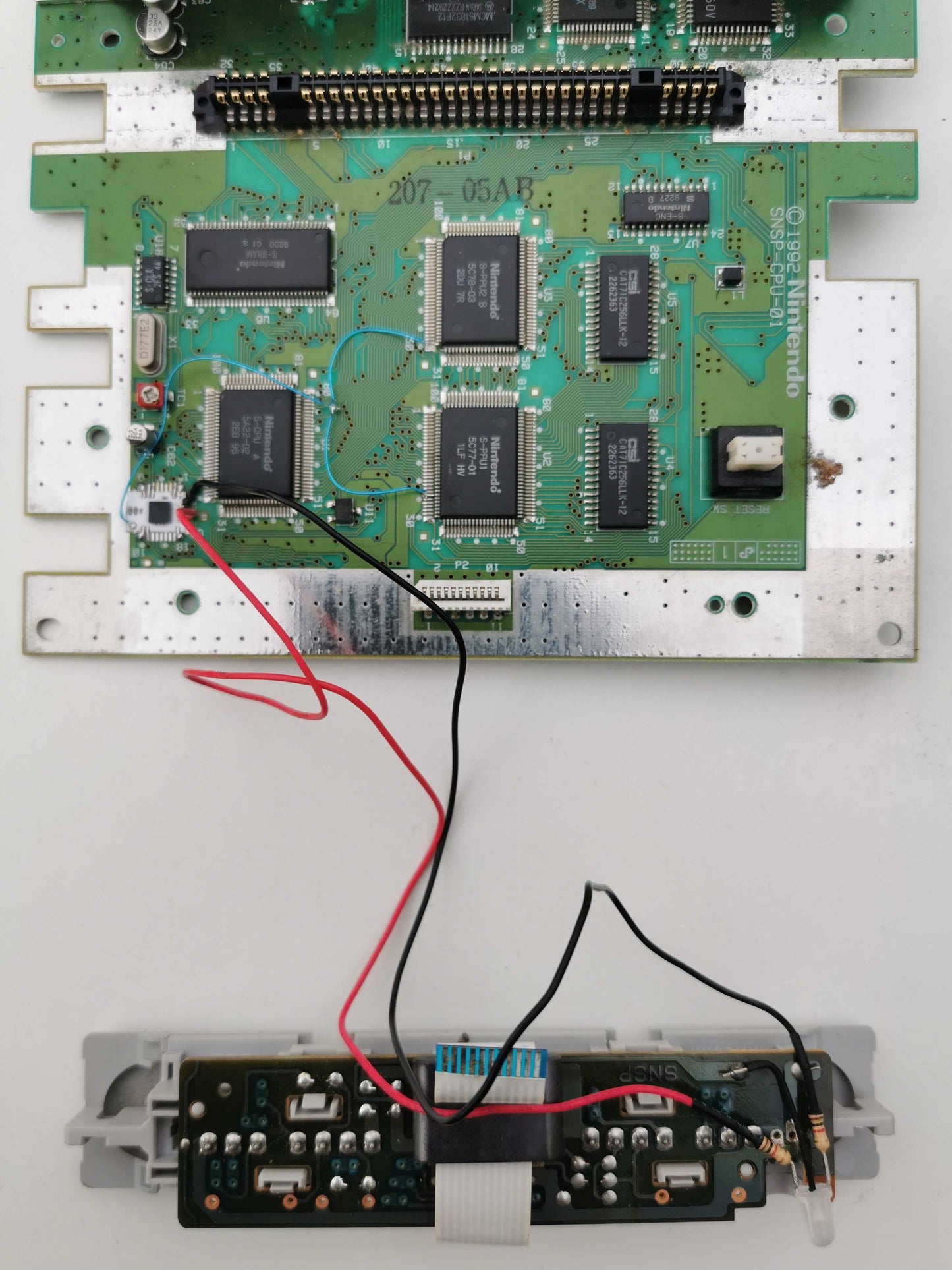

Remove CIC, solder in PicoCIC in its place in the orientation the product photo shows

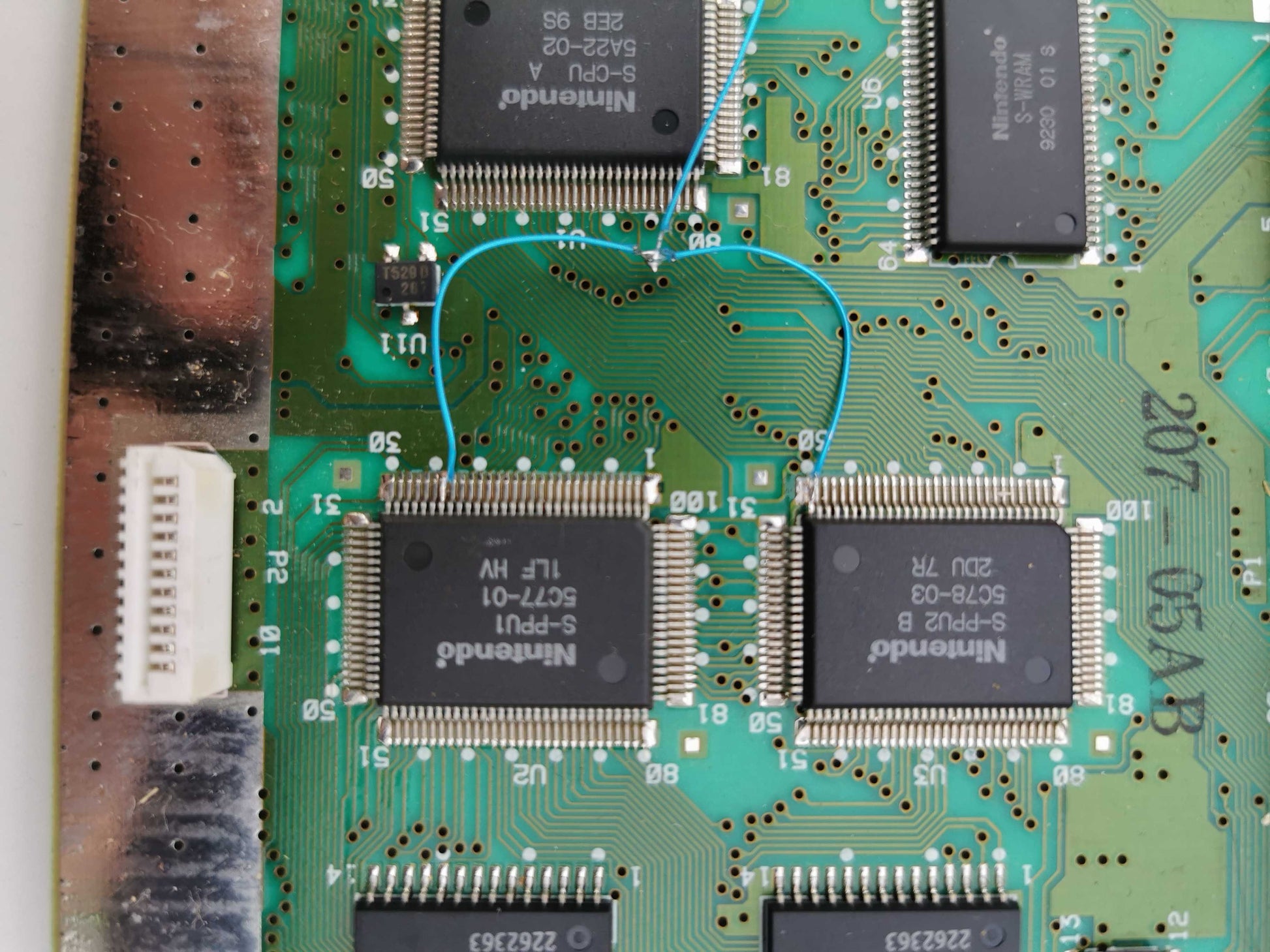

Lift pin 24 of PPU1 and pin 30 of PPU2 then solder those pins together and to the single pad on its own in PicoCIC.

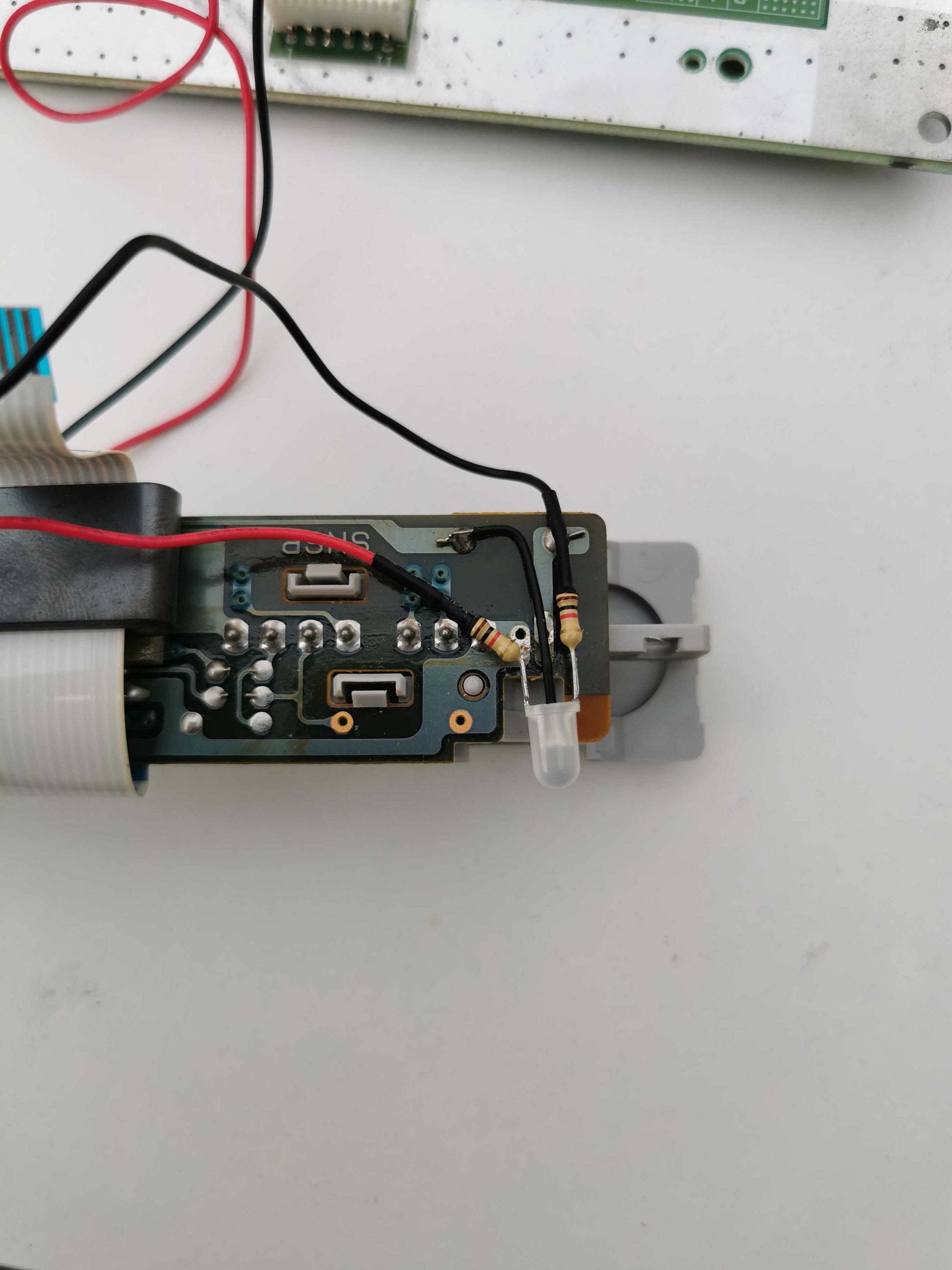

Solder the LED pin that's shortest to 5V (there is a pin right near original LED that has 5V) and the other two wires to the two remaining pads on PicoCIC
Hold RESET for over half a second to cycle between modes. Auto / 50Hz / 60Hz. The power LED will change between red, blue and purple.
